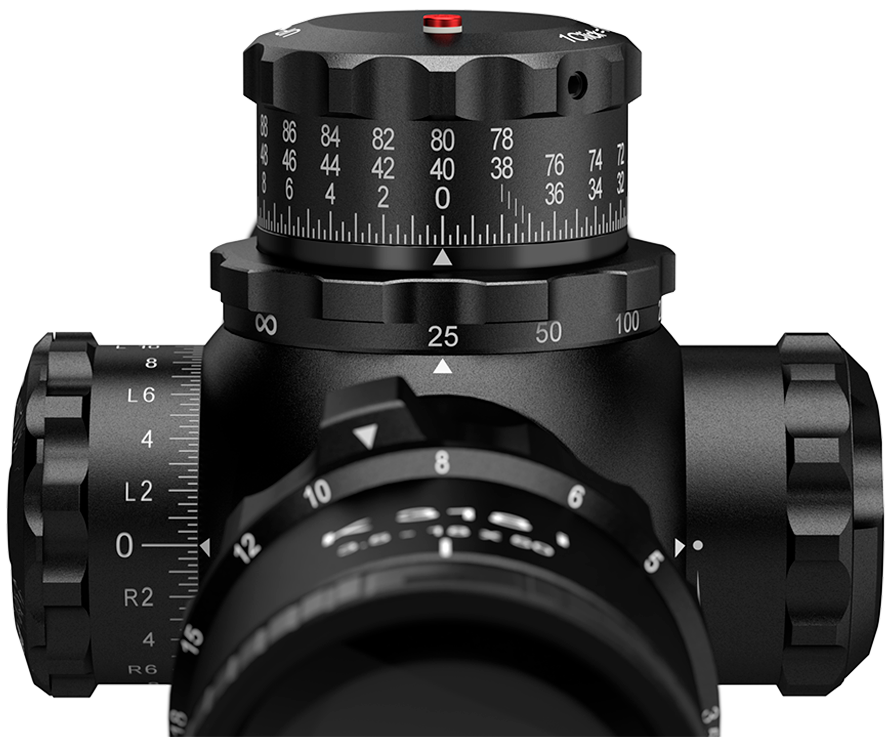

Ultrashort and lightweight riflescope with wide field of view and high contrast image
Absolutely reliable repeat accuracy and precise, clearly defined click mechanism
Optional left or right side windage
Innovative TWIST GUARD windage (patented)
Parallax wheel integrated into the elevation turret (patented) (25 m to ∞)
Precise illuminated reticles in 1st focal plane

Magnification:
3.5 - 18
Objective lens diameter:
50 mm
Exit pupil:
6.9 - 2.8 mm
Eye relief:
92 mm
Field of view:
9.3 - 2.0 m/100 m
Diopter compensation:
+2.5 / -3.5 dpt
Twilight factor (DIN 58388):
13.2 - 30.0
Impact correction per click:
.1 MRAD | ¼ MOA
Adjustment range (E/W):
3.0 / 1.5 m/100 m
Parallax adjustment:
25 m till ∞
Tube diameter:
34 mm
Length:
313 mm
Weight:
940 g
Focal plane:
1
Illuminated:
Yes
Warranty:
10 years
